Magma Engine
Magma Engine is a custom game engine written in C/C++.
It uses ImGui for the editor interface, which makes it extendable with custom plugins and add-ons.
Powering the engine is the SystemManager, designed to allow adding or modifying systems within the engine.
The main systems are as follows:
It uses ImGui for the editor interface, which makes it extendable with custom plugins and add-ons.
Powering the engine is the SystemManager, designed to allow adding or modifying systems within the engine.
The main systems are as follows:

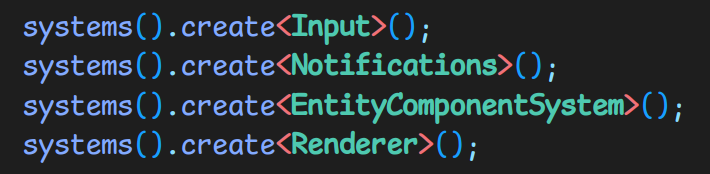

The SystemManager requires that systems added to it inherit publicly from the System class
In the background, on the most basic level, it just adds the system to a vector of System base pointers
It's made to handle boilerplate, utilities and other quality-of-life features for systems, like multithreading or setting up the first layer of reflection that the engine provides
The SystemManager does more than just list systems. It can also handle more advanced behaviors like Replacing Systems
In the background, on the most basic level, it just adds the system to a vector of System base pointers
It's made to handle boilerplate, utilities and other quality-of-life features for systems, like multithreading or setting up the first layer of reflection that the engine provides
The SystemManager does more than just list systems. It can also handle more advanced behaviors like Replacing Systems

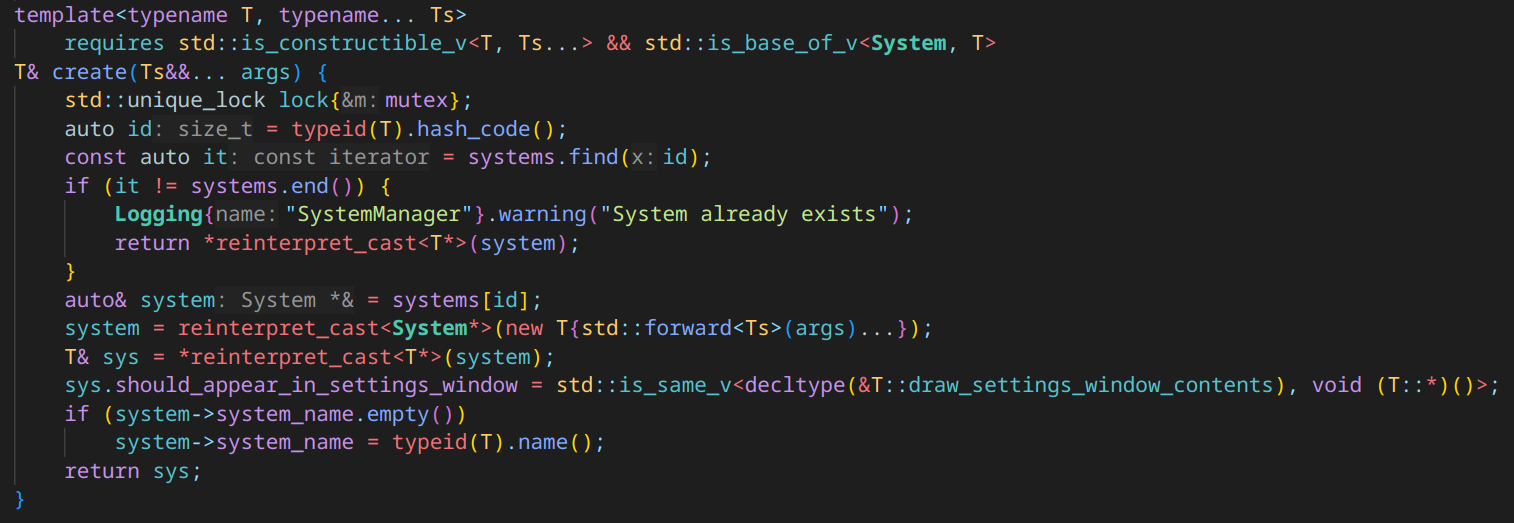

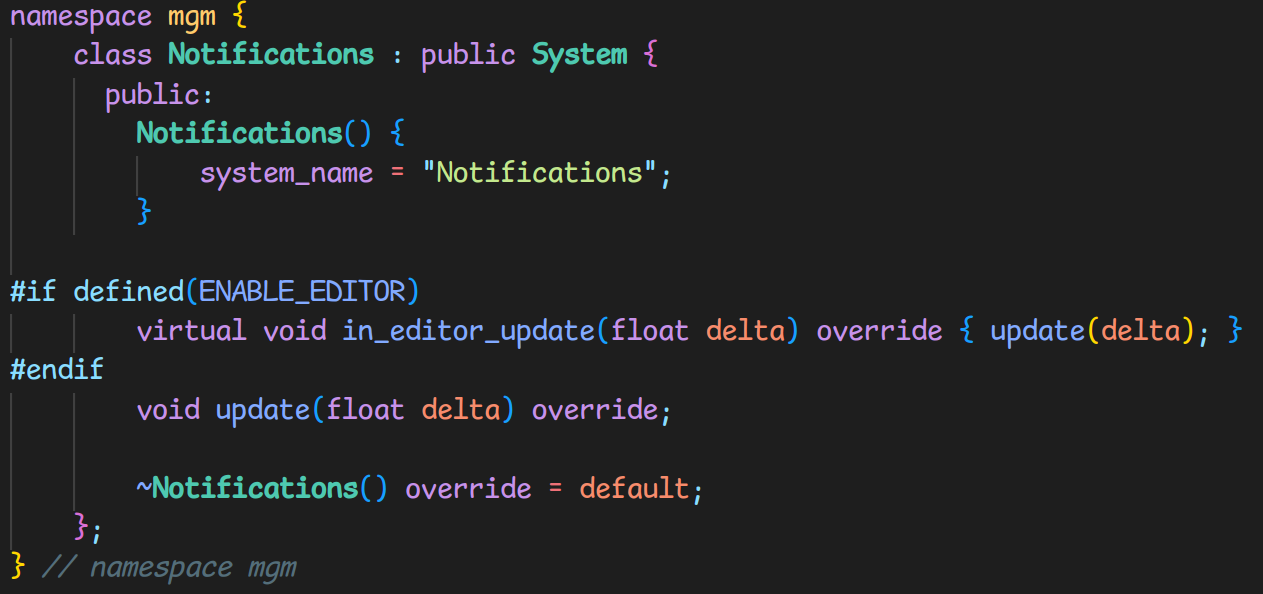

Creating a system, the class just needs to inherit from the System class and implement a default constructor
Optionally, each of the special system functions (update, begin_play, end_play etc) can be overwritten to add functionality
Optionally, each of the special system functions (update, begin_play, end_play etc) can be overwritten to add functionality

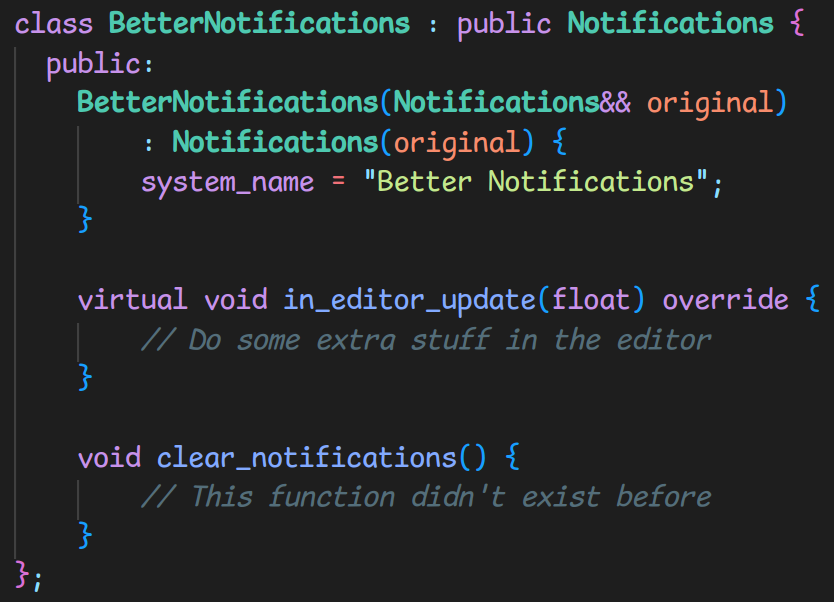

Replacing systems is simple
It only requires that the replacement inherits from the original, and that it implements a conversion move constructor
Existing functions can be overwritten and new functions can be added, and accessing the system is done the same way as normal systems
It only requires that the replacement inherits from the original, and that it implements a conversion move constructor
Existing functions can be overwritten and new functions can be added, and accessing the system is done the same way as normal systems

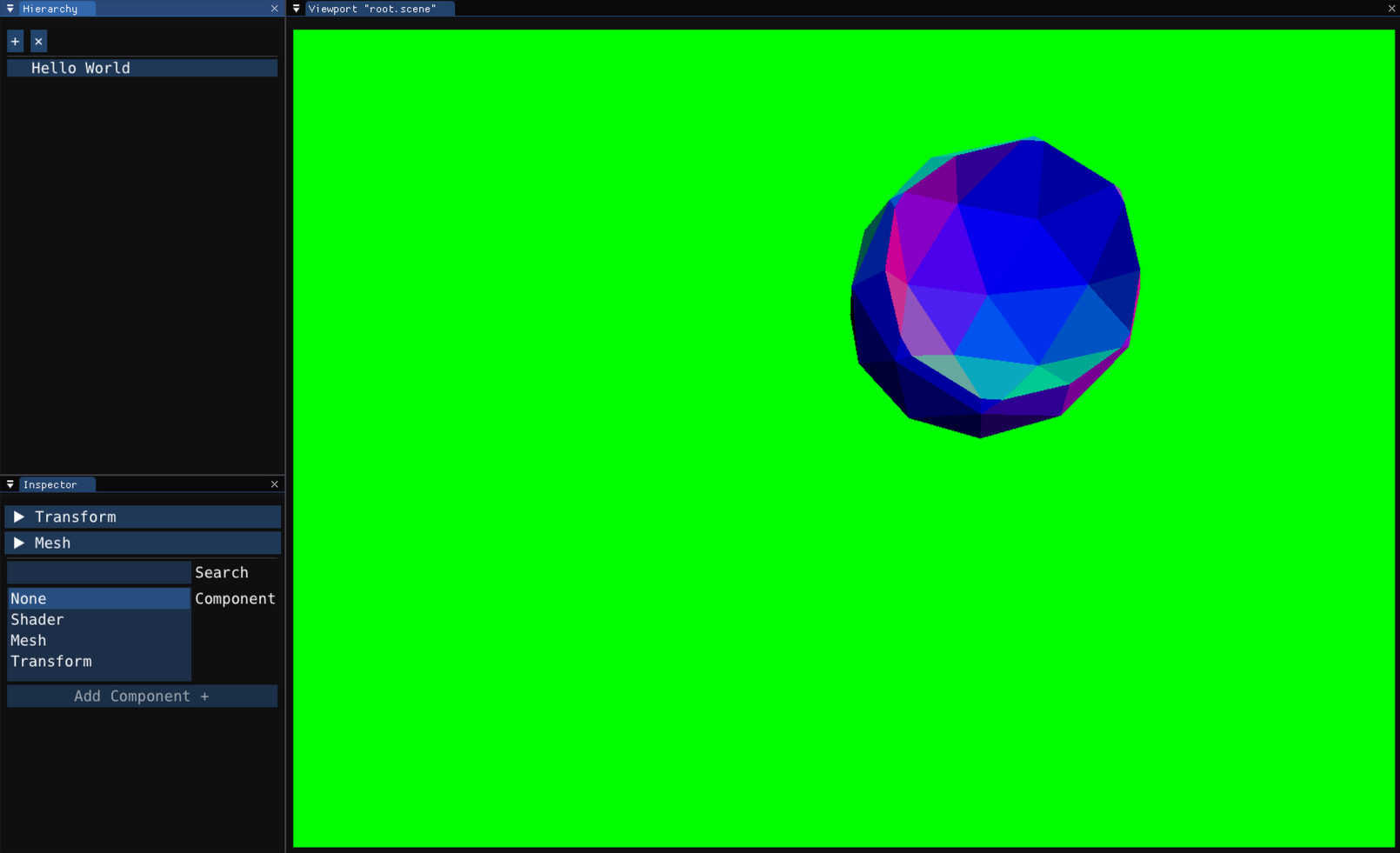

Placeholder Editor
Placeholder Editor Windows

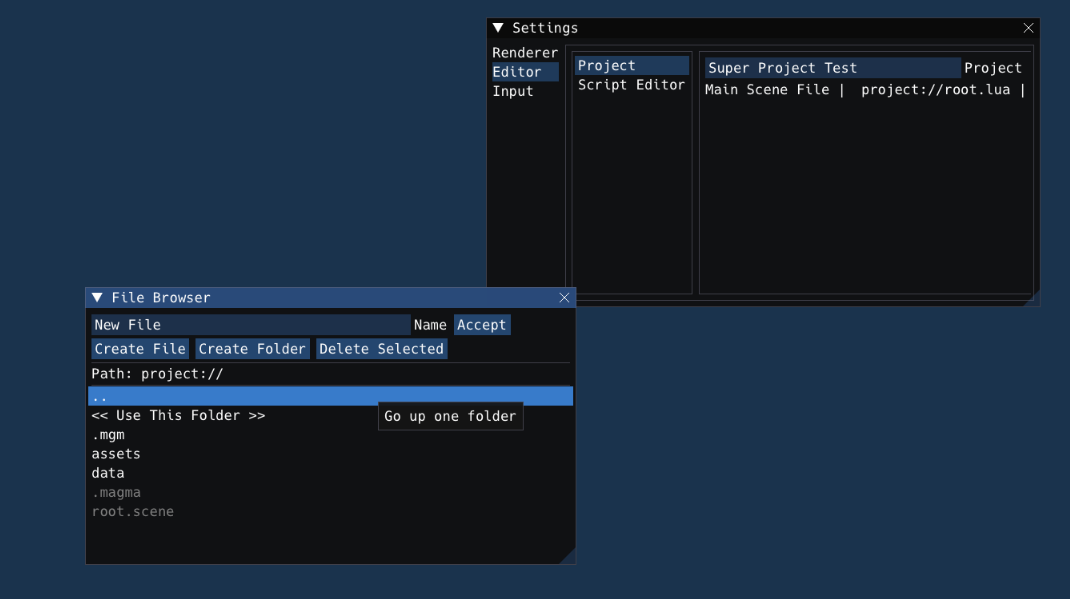

Magma has an API for creating custom editor windows, allowing users to extend the editor interface as needed.

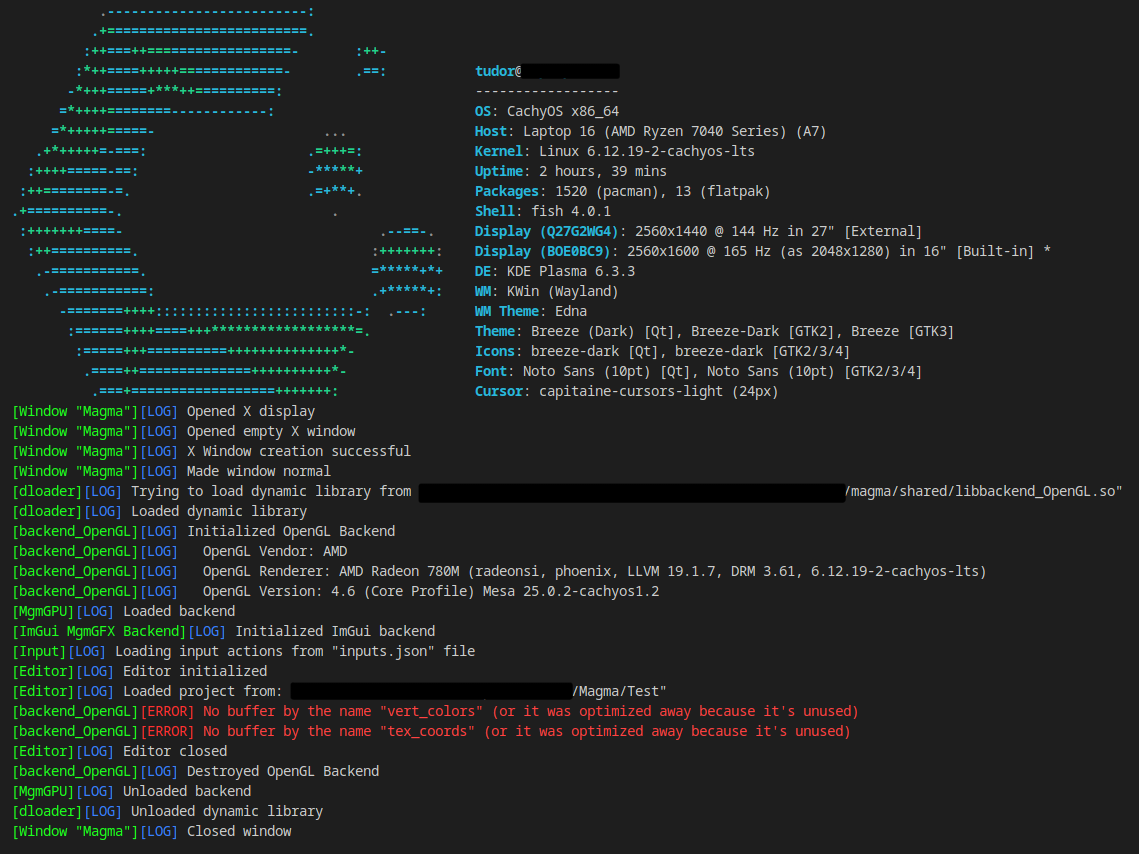

Multi-platform support ensures that Magma works on both Windows and Linux. Porting it to other platforms is easy thanks to its modularity.

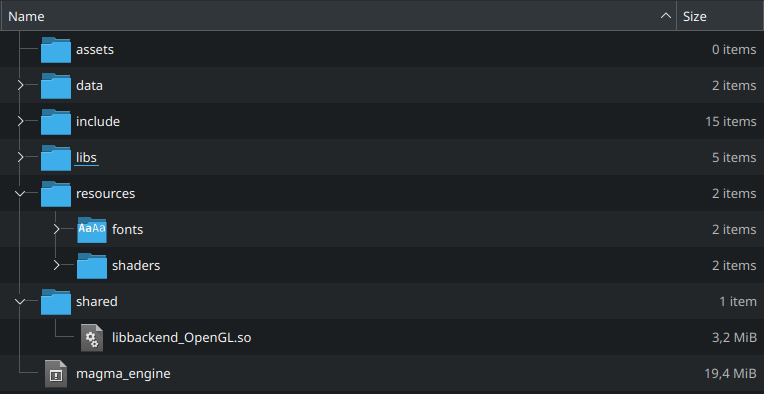

The engine’s backend is abstracted and easily replaceable. For example, changing the graphics/compute backend is as simple as swapping out the backend library.
